VEPL-GLV-PS-1411 (Cl.900) / VEPL-GLV-PS-1412 (Cl.1500) / VEPL-GLV-PS-1413 (Cl.2500)
Pressure Seal Globe Valve – Class 900 / 1500 / 2500
ASME B16.34 pressure-seal globe valve for extreme service. Butt-weld ends with GRAFOIL gasket and self-sealing bonnet ensure performance at the highest operating pressures.
- Pressure
- Class 900 (235 Kg+
- Size Range
- 2" to 14"
- Testing
- API 598
The anatomyscroll to separate

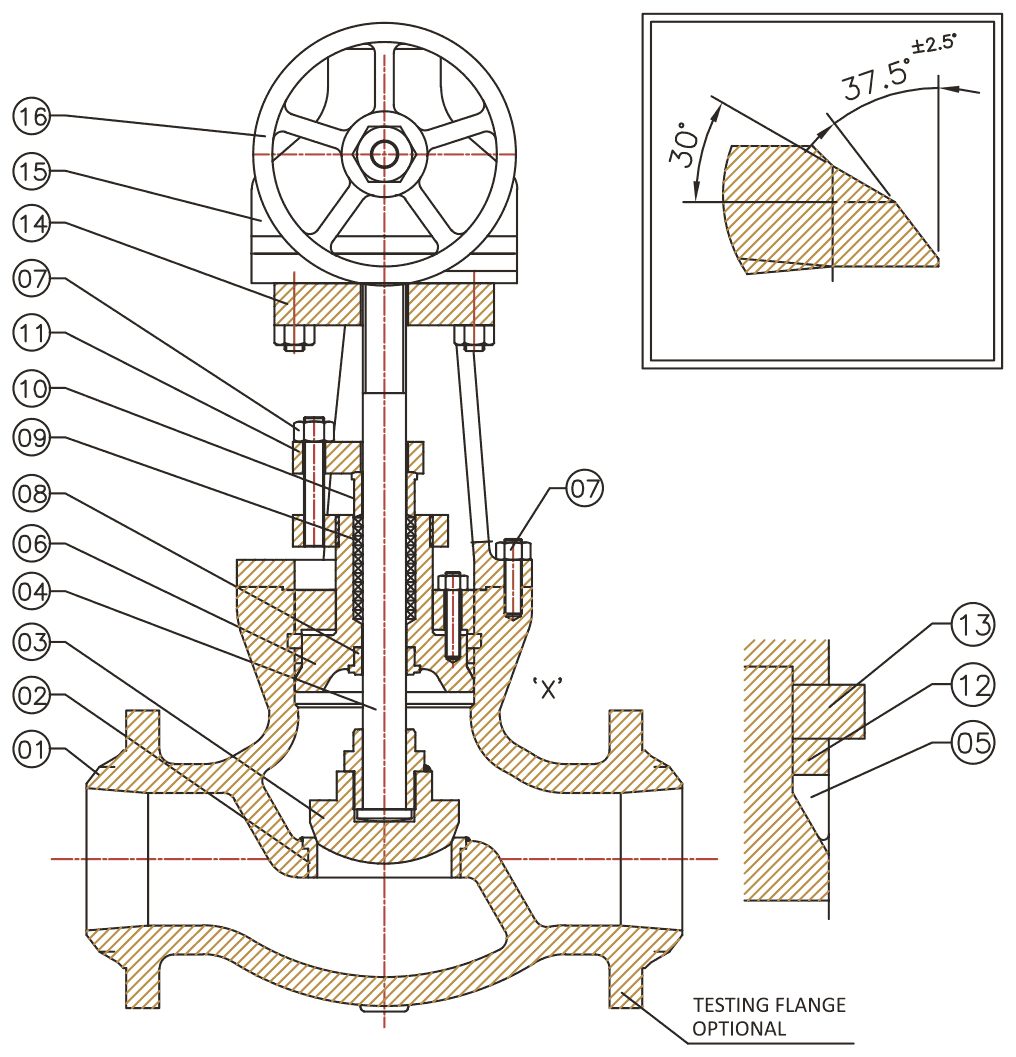

Assembly view
Scroll to separate the pressure envelope from its gearbox, trim, and hardware — the actual model for this valve, not a generic stand-in.
Technical specifications
- Material
- Body: ASTM A216 GR.WCB (CS) / ASTM A351 GR.CF8M (SS) / ASTM A352 GR.LCC (LCS)
- Pressure Rating
- Class 900 (235 Kg/cm²) / Class 1500 (391 Kg/cm²) / Class 2500 (651 Kg/cm²)
- Temperature Range
- -29°C to +538°C (CS per ASME B16.34; rated Class 900–2500)
- Size Range
- 2" to 14" (DN 50–350)
- End Connections
- Butt Weld End (ASME B16.25)
- Gasket
- GRAFOIL (self-energising pressure-seal)
- Operating System
- Handwheel (2"–3") / Gear Box (4" and above)
- Model Numbers
- VEPL-GLV-PS-1411 (Cl.900) / VEPL-GLV-PS-1412 (Cl.1500) / VEPL-GLV-PS-1413 (Cl.2500)
Standards & testing
- MFG. STD: ASME B16.34
- Butt Weld End: ASME B16.25
- Insp. & Test: API 598
- Press. & Temp: ASME B16.34
Custom engineering
Special trims, exotic materials and non-standard dimensions are available against your datasheet — send it with your quote request and our engineering team will respond with a compliant proposal.
