VEPL-GLV-BB-1401 (Cl.150) / VEPL-GLV-BB-1402 (Cl.300)
Cast Globe Valve OS&Y – Class 150 / 300 (BS 1873)
BS 1873 cast globe valve with rising stem and OS&Y design for precise throttling and isolation. Seal welded seat ring with stellited plug for long service life.
- Pressure
- Class 150 (32 Kg+
- Size Range
- 2" to 14"
- Testing
- API 598
The anatomyscroll to separate

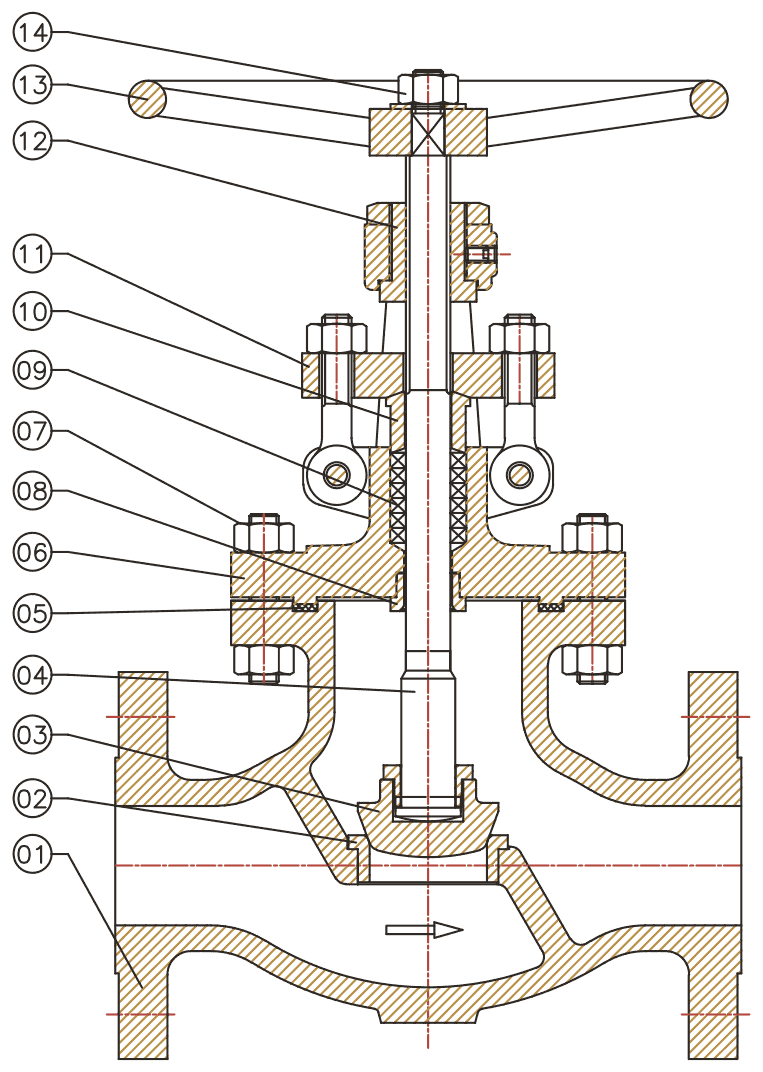

Assembly view
Scroll to separate the pressure envelope from its gearbox, trim, and hardware — the actual model for this valve, not a generic stand-in.
Technical specifications
- Material
- Body: ASTM A216 GR.WCB (CS) / ASTM A351 GR.CF8M (SS) / ASTM A352 GR.LCC (LCS)
- Pressure Rating
- Class 150 (32 Kg/cm²) / Class 300 (78 Kg/cm²)
- Temperature Range
- -29°C to +538°C (CS per ASME B16.34; SS to +816°C)
- Size Range
- 2" to 14" (DN 50–350) for Class 150; 2" to 12" for Class 300
- End Connections
- Flanged (ASME B16.5), RTJ, Butt Weld (ASME B16.25)
- Face T To Face
- ASME B16.10
- Seat Ring
- ASTM A105 + STL6; integral with body + Stellited 6
- Plug
- Carbon Steel + 13% Cr. overlay or Stellited 6
- Gland Packing
- Braided graphite + interior die-formed flexible graphite
- Operating System
- Handwheel (2"–12"); Gear Box (14" and above)
- Model Numbers
- VEPL-GLV-BB-1401 (Cl.150) / VEPL-GLV-BB-1402 (Cl.300)
Standards & testing
- MFG. STD: BS 1873
- Face to Face: ASME B16.10
- Flange End: ASME B16.5
- Insp. & Test: API 598
- Press. & Temp: ASME B16.34
- Separated yoke: 16" and above
Custom engineering
Special trims, exotic materials and non-standard dimensions are available against your datasheet — send it with your quote request and our engineering team will respond with a compliant proposal.
