Valvax Engineers · New-generation flow control · Est. 2025
FLOW,MASTERED.
Cast and forged steel valves engineered for the world's most unforgiving lines — Class 150 to 2500, fire-safe, and hydro-tested before they ever see your pipeline.
Nothing left to chance.
Every part hydro-tested, every weld inspected, before it ever ships.
Valve Families
Built around mechanical character, not filler sections.
Trunnion Ball · Class 300
Flagship isolation
Trunnion Ball
Full-bore shutoff for high consequence lines.
Built for refinery headers, pipeline isolation, and critical transfer duty where low torque and repeatable sealing matter more than marketing language.
Best used for
- Pipeline isolation
- Tank farms
- Refinery block valves
The Teardown
Every part, accounted for
| Item | Description | Spec |
|---|---|---|
| 01 | Body | ASTM A216 Gr.WCB · cast · 3-piece body |
| 02 | End connectors | ASME B16.5 RF flanges · Class 300 |
| 03 | Seat retainers | RPTFE / PEEK · fire-safe API 607 |
| 04 | Ball | SS 316 · trunnion-mounted · full bore |
| 05 | Stem | SS 316 · anti-blow-out · anti-static |
| 06 | Gland & packing | Graphite packing · live-loaded |
| 07 | Top bonnet | Bolted bonnet · spiral-wound gasket |
| 08 | Trunnion | Low-torque support bearing |
| 09 | Operator | ISO 5211 pad · gear box |
Keep scrolling — every component, accounted for
The Range
Seven families of flow control
Ball, gate, globe, check, butterfly, forged and diaphragm — every family engineered to its governing standard and hydro-tested before dispatch.
Fig. 01

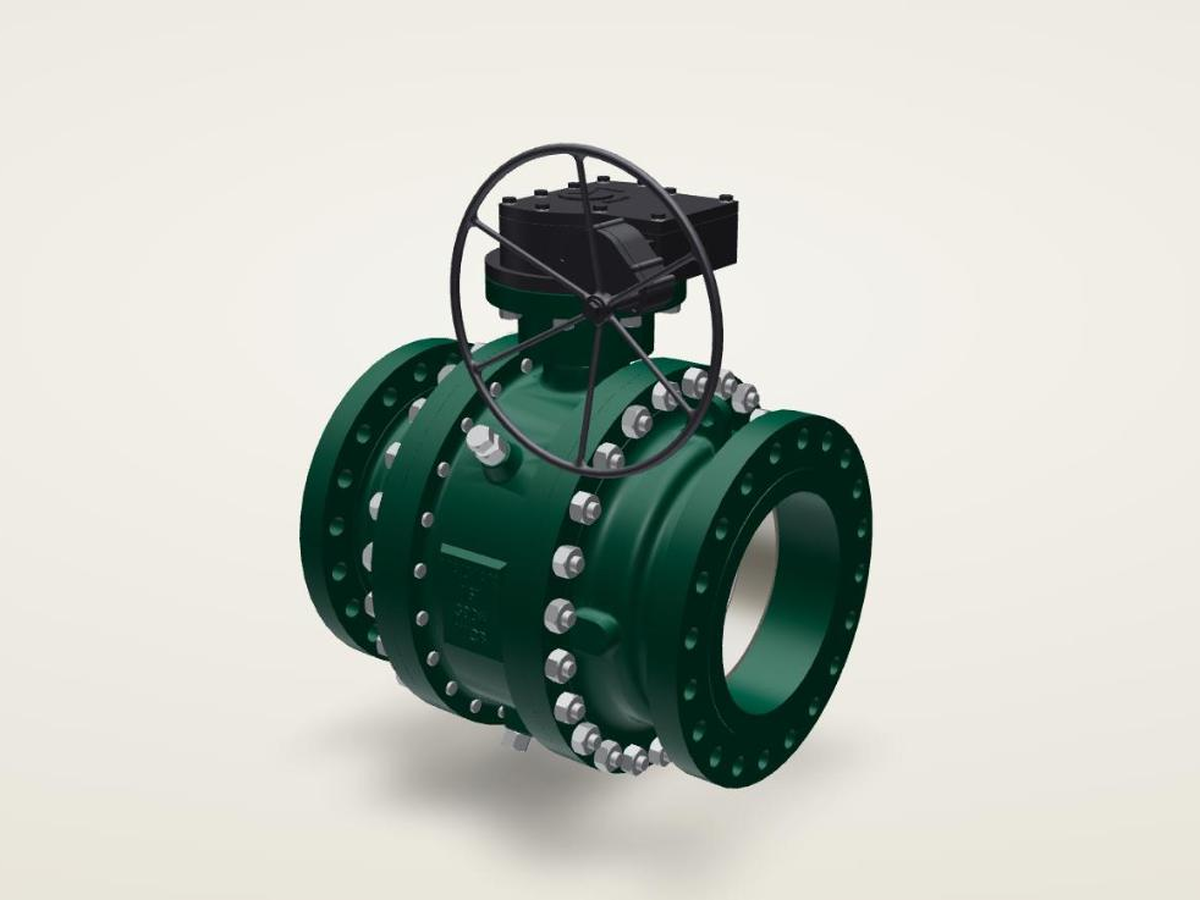

Ball Valves
Trunion & floating type with anti-static, anti blow-out fire-safe design. ISO 17292 / API 6D compliant across Class 150 to 2500.
- Class range
- CLASS 150–2500
- Models
- 9
Fig. 02
Gate Valves
Cast & forged rising-stem OS&Y gate valves. API 600 bolted bonnet and pressure-seal configurations from Class 150 to 2500.
- Class range
- CLASS 150–2500
- Models
- 8
Fig. 03

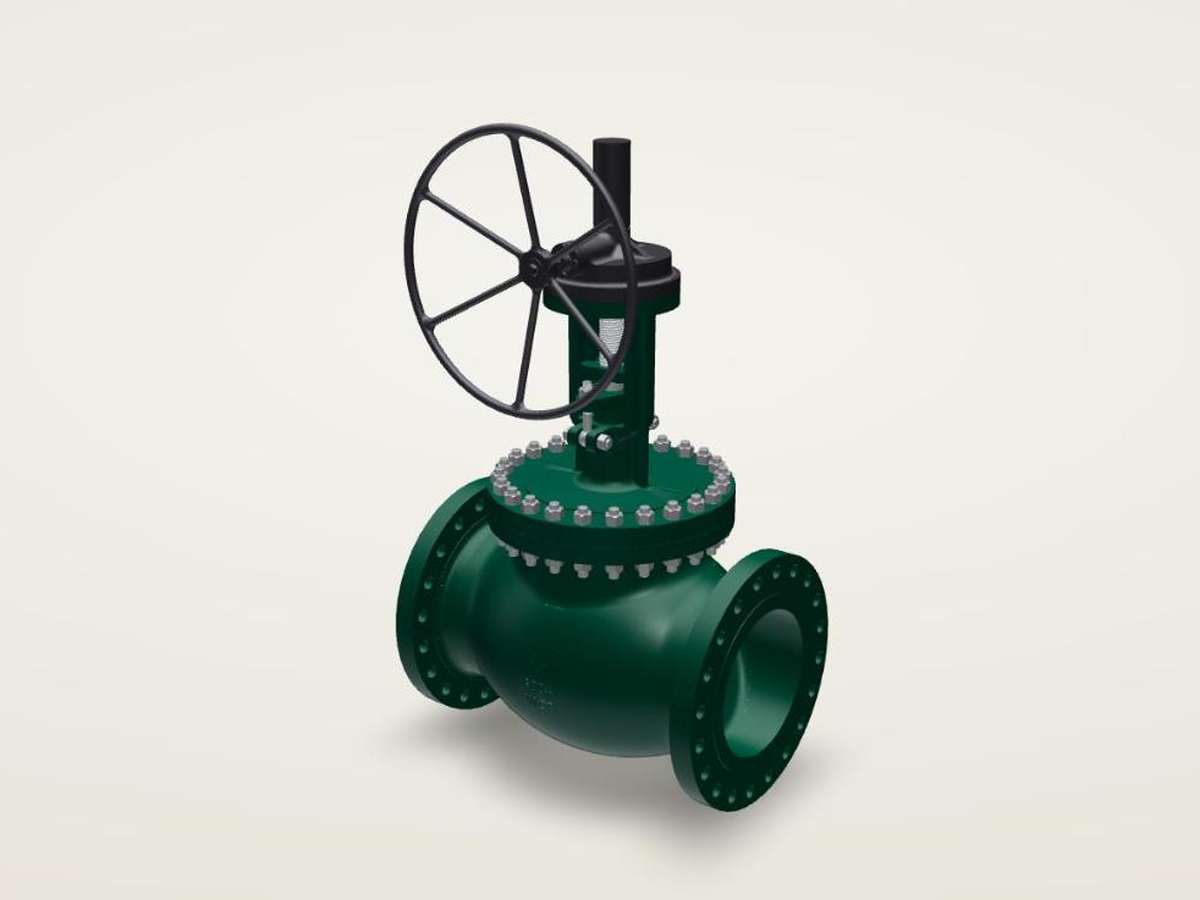

Globe Valves
BS 1873 cast and pressure-seal globe valves for precision throttling and isolation, Class 150 to 2500.
- Class range
- CLASS 150–2500
- Models
- 6
Fig. 04

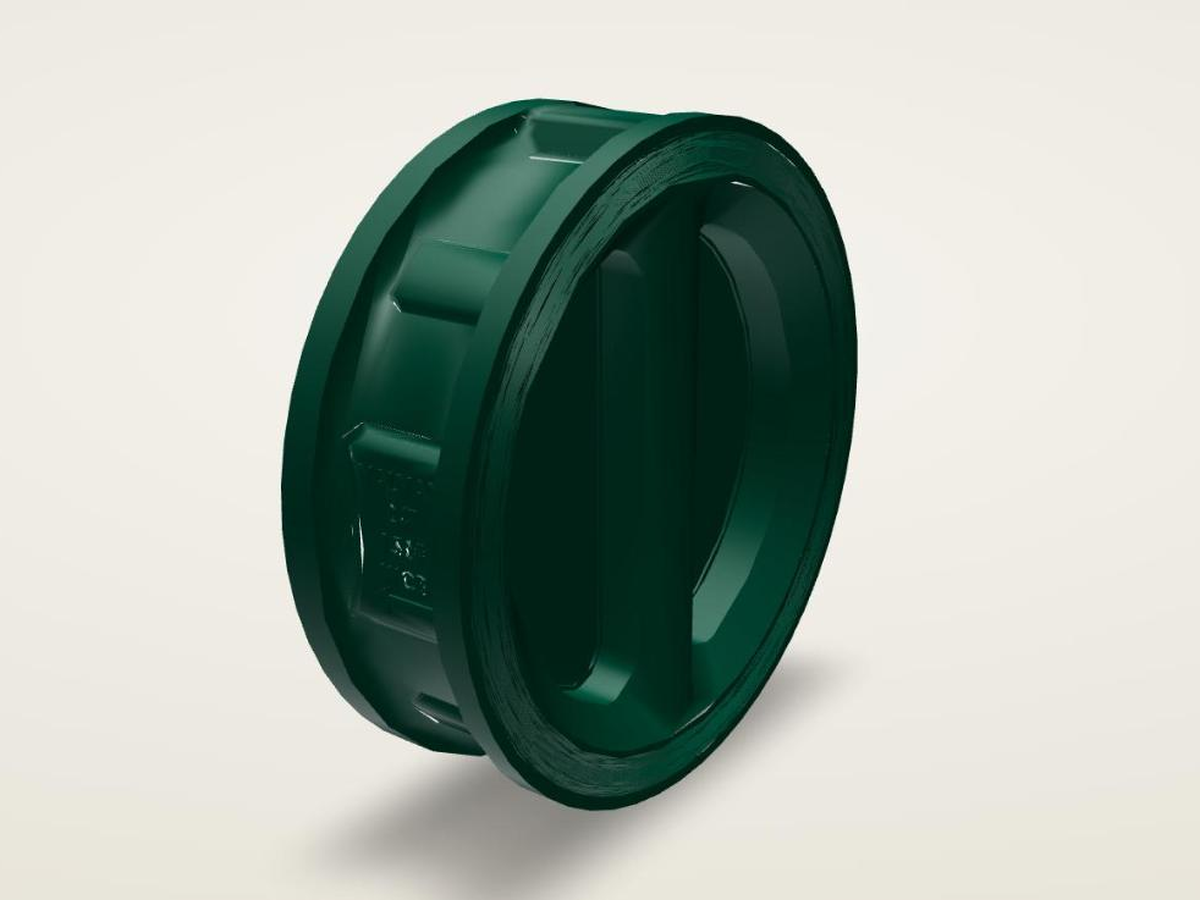

Check Valves
Full range of non-return valves: dual plate, axial flow non-slam, tilting disc, and swing check types.
- Class range
- CLASS 150–2500
- Models
- 14
Fig. 05

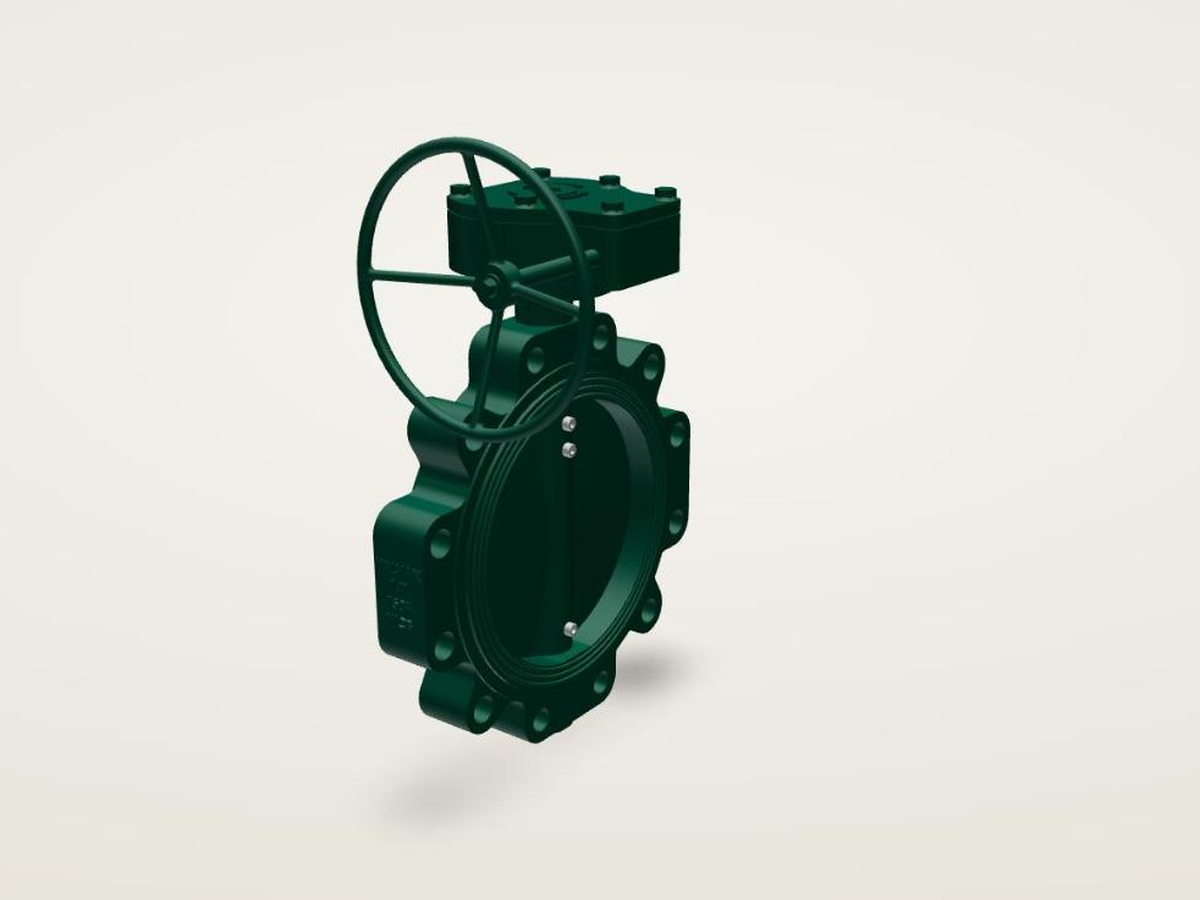

Butterfly Valves
API 609 double offset butterfly valves in wafer, lug, and flange-end configurations, Class 150 to 600.
- Class range
- CLASS 150–600
- Models
- 3
Fig. 06
Forged Valves
API 602 / ISO 15761 forged steel gate, globe, lift check, and ball valves for Class 800, 1500, and 2500 service.
- Class range
- CLASS 800–2500
- Models
- 4
Fig. 07
Diaphragm Valves
BS 5156 rising-stem diaphragm valves in carbon steel, cast iron, and ductile iron for corrosive service, PN 10 & PN 16.
- Class range
- PN 10–16
- Models
- 1
The Proof
Numbers hold, like our valves
Hydro-tested to API 598 — 100% of units, zero exceptions
The World
Where our valves hold the line
Six industries, one requirement: flow control that never becomes the problem.
The Legacy
Revision block — engineered for tomorrow
Foundation
2025
In the heart of industrial India, a new vision was born. Not just to make valves, but to craft guardians of critical systems. From day one, precision was a promise and quality was a passion.
Khopoli Excellence
2025
In Khopoli, Maharashtra, we built more than a factory. We created a home for precision engineering where every valve is crafted with obsessive attention to detail. Here, innovation meets discipline.
Global Expansion
2025
From day one, our valves found homes in the scorching deserts of Saudi Arabia, the modern landscapes of Bahrain, and the coastal facilities of Oman. Each installation a testament to our growing expertise.
Engineering Tomorrow
2026
Today, we stand at the threshold of tomorrow. Valvax Engineers represents a new generation of flow control, built for the future. We are not just making valves; we are safeguarding the world's critical infrastructure.
Your Move
SpecifyValvax.
Send a line list or a datasheet — an engineer answers with a compliant selection and a firm quote, typically within one working day.
